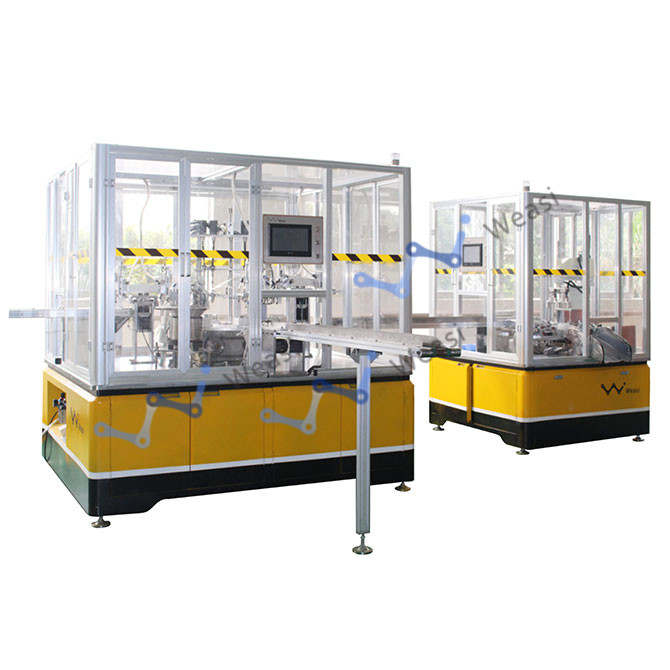

1, The whole machine is divided into assembly and test two parts;

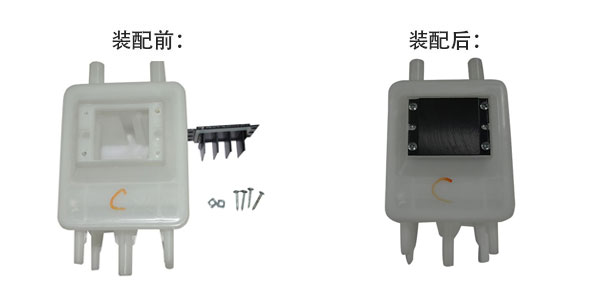

2. The assembly line adopts the turntable structure, the radiator plate of the water tank is placed on the belt line manually, and the manipulator automatically sends it to the turntable;
3, The product use the servo to screw, the speed and torque can be adjusted, if the screw is not success, it can automatically return and then redo;
4, The test line uses horizontal 4 joint robot to take products, the test system uses the German SIEMENS test system;
5, The product appearance adopts WEASI industrial design special frame + aluminum alloy cover;
6, Operating system: German SIEMENS PLC and human-machine interface;
7, Test content: water tank tightness test

Water dispenser inner liner manufacturing industry

1, The efficiency is increased over 100% compared of the electric or air screwdriver;
2, The power consumption of the screwdriver is 30% lower than the electric one and 50% lower than the air one, more energy saving and environmental protection;
3, Screw driving and gas leakage test are done by two equipment and a four axis robot, reduce the unsafe factors of personnel participation in the middle link;
4, The gas leak detection uses clever sensor, detection standard is adjustable;

1, The size of the assembly line: 2000*1900*1800mm (length * width * height),

test line : 1300*1300*1800mm (long * width * height);
2, Drive mode: cam splitter + motor;
3, The whole machine speed: 20PCS/min;
4, Weight: 500KG, assembly line test line 350KG;
5, Running voltage: 220AC;
6, Power: 5KW, assembly line test line 3.5KW;
7, Air pressure: 0.5-0.6MPa;
