一、Functional description

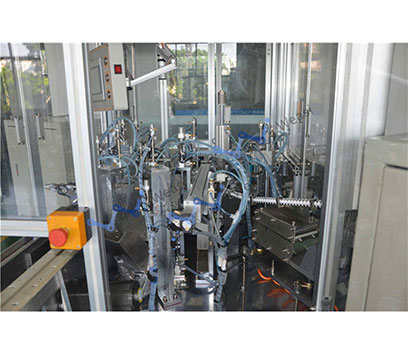

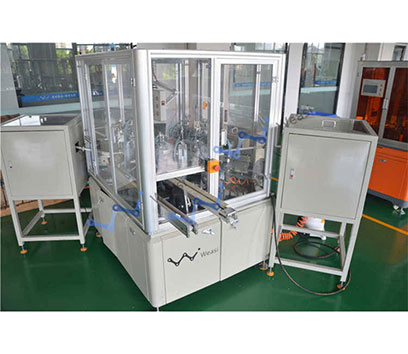

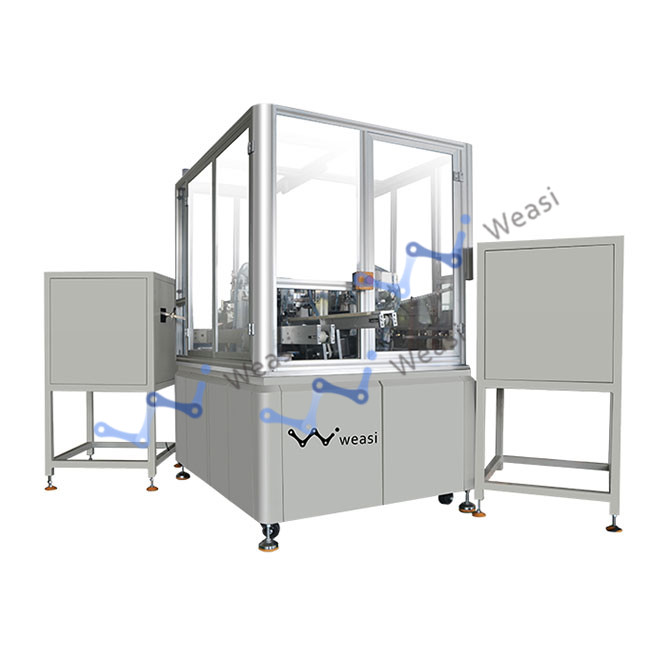

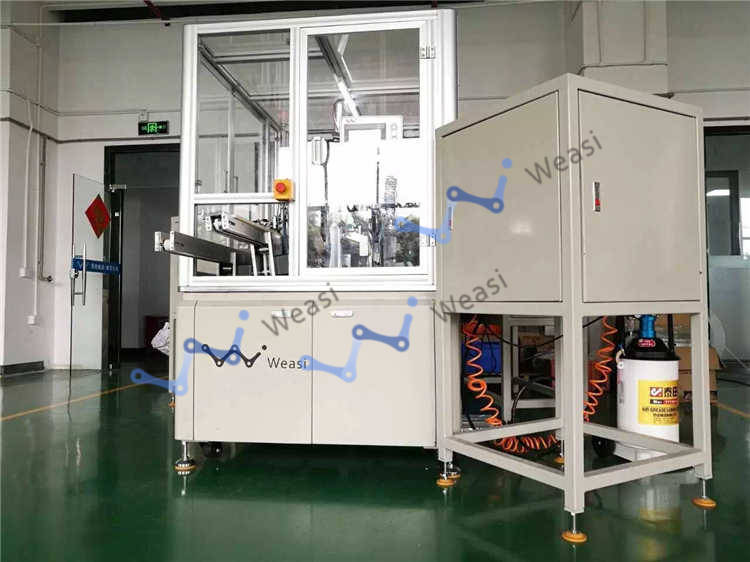

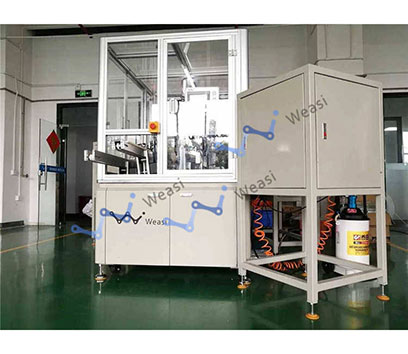

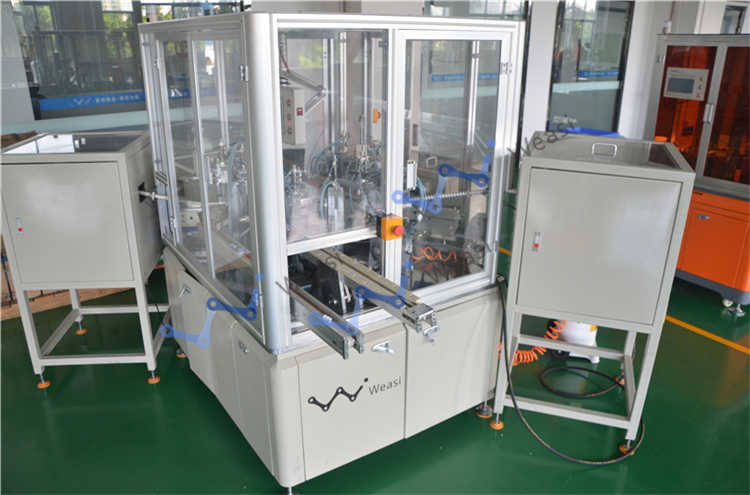

1, The machine adopts the turntable type structure assembly, parts feeding, feeding, assembly, testing, blanking system are fully automatic;
2, The whole machine adopts PLC program control, man-machine interaction operation interface, servo motor combined with cylinder, and assembled into manipulator to achieve precision assembly, and has functions of automatic counting and automatic alarm, automatic display of abnormal functions;
3，Automatic inspection and alarm of incoming / breakdown;
4, The machine has the function of automatic detection, can detect and identify the missing parts, automatic sorting of unqualified products;
5, Operating system: MITSUBISHI PLC and Weinview human-machine interface.
二、Application industry
Used in home appliances, electrical and lighting products and other industries.
三、Equipment characteristics
1, The overall appearance of the Weasi industrial design special frame, beautiful appearance, firm structure;
2, The machine uses PLC program control, human-computer interaction interface, with simple operation, easy to use and other characteristics;
3, The automatic operation of the whole machine only need 1 people to operate, save a lot of labor, compared with the manual assembly, the efficiency increased by 3 times;
4, The machine detects the use of precision sensors, leakage fittings detection accuracy, two products, 1 machines general purpose;
5, Operating system: MITSUBISHI PLC and Weinview human-machine interface.
四、Main performance parameters
1, Machine size: 3000*2700*1800mm (length * width * height);
2, Drive mode: pneumatic drive;
3, The machine speed: 20PCS/ minutes;
4, Net weight: 2000KG;
5, Running voltage: 220AC;
6, Power: 1.2KW;
7, Air pressure: 0.4-0.6MPa.
