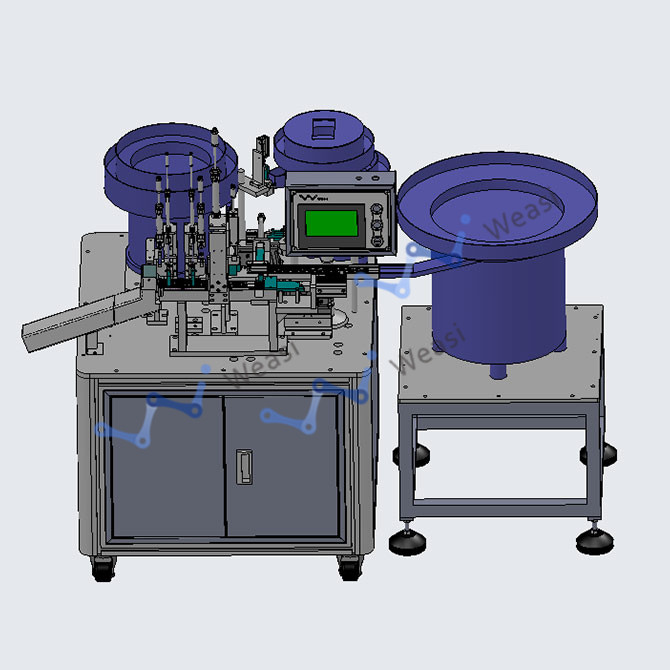

一、Functional description
1. The machine adopts automatic feeding of vibrating plate, and the feeding mechanism adopts pneumatic drive;

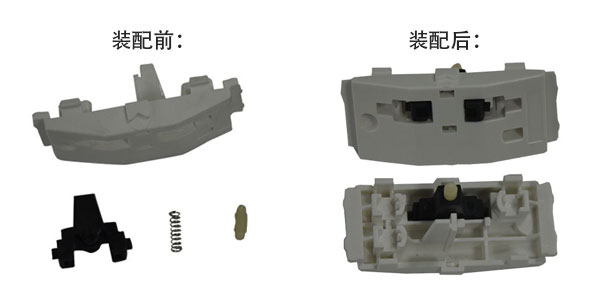

2, Adopts the linear type mold positioning structure assembling machine, The central component of seesaw switch are manually added to the automatic feeding plate, all design for cylinder module structure;
3, Can be single or batch non-standard manufacturing;
4, Operating system: MITSUBISHI PLC and Weinview human-machine interface.
二、Application industry
Hardware, household appliances, electrical engineering, electronics and other industries, similar assembly processes in different industries and products.
三、Equipment characteristics
1, The efficiency is 2-3 times that of manual assembly, 1 people can operate 2-4 sets of the same equipment operation production;
2, Tthe machine assembly products have qualified testing function, such as the detection of unqualified products in the chute and automatic sorting without stopping;
3. The special switch spring separation structure and spring separation structure are developed independently, which can ensure the machine running for a long time, and the assembly is not stuck, and the efficiency is high;
4, The machine detects the use of precision sensors, leakage fittings detection accuracy, product quality is more controllable, more stable;
5, Operating system: MITSUBISHI PLC and Weinview human-machine interface.
四、Main performance parameters
1, Machine size: 1750*900*1300mm (length * width * height);
2, Drive mode: pneumatic drive;
3, The machine speed: 35PCS/ minutes;
4, Net weight: 150KG;
5, Unning voltage: 220AC;
6, Power: 2.5KW;
7, Air pressure: 0.4-0.5MPa.
